CM-SAMA5D34 | Atmel SAMA5D34 CPU Board

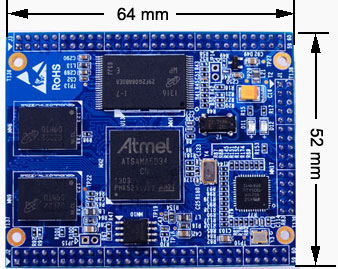

  • Dimensions: 52*64mm, 8 layer
  • Working Temperature: -40 to +85 Celsius
  • Atmel SAMA5D34 Cortex-A5 CPU, 536 MHz
  • 256 MB DDR2 SDRAM, 256 MB NAND Flash
  • 150Pin Expand connector
  • Low power consumption, only 0.5W
  • Integrated 1GMBit Ethernet on board

仅支持批量购买
需求请联系我们

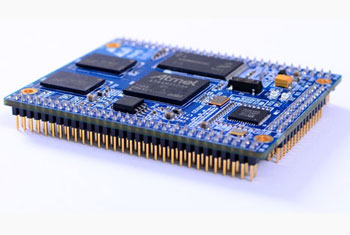

CM-SAMA5D34 is a CPU board base ATMEL SAMA5D34 ARM Cortex-A5 processor working at 536MHZ.

The CM-SAMA5D34 processor card has external 256MB DDR2 SDRAM, 256MB Nand Flash and 4MB SPI Flash. It Integrated one 10/100/1000 MBit/s Ethernet chips on board, and many peripherals like UART, Ethernet, USB, SDIO, CAN, SPI and all IOs are brought out by three 2.0mm pitch double-pin (J1, J2, J3) that lead out 150Pin, which is convenient and flexible for customer’s secondary development work.

CoreWind also designed one expansion boards to bring out connectors for implementing and extending the functions of CM-SAMA5D34. The boards are called IPC-SAMA5D34 single board computers. CoreWind offers Linux 3.6.9 for the boards. They are high performance single board computer for industrial needs.

CM-SAMA5D34 CPU Board Feature

CPU processor

  • ATMEL SAMA5D34 ARM processor
  • Cortex-A5, working at 536MHZ.

DDR2 RAM Memory

  • 256MB DDR2 RAM, 32bit data bus

Flash Memory

  • 256MB Nand Flash
  • 4MB SPI Flash

Pin interface

  • 2 x 60 pin 2.0mm space DIP connector
  • 1 x 30 pin 2.0mm space DIP connector
  • Resource: USB, Ethernet, Serial, SSC Audio, CAN, SDIO,LCD, Touch, SPI, IIC, GPIO

On-board resources

  • Integrated 1GMBit Ethernet on board
  • 2 x LED
  • Supply Voltage 3.3V

PCB Size

  • 8 layer, 52 x 64 (mm)
  • Low power consumption, only 0.5W

Software support

  • Linux 3.6.9 + Qt
  • Android 4.0 support(will provide later).

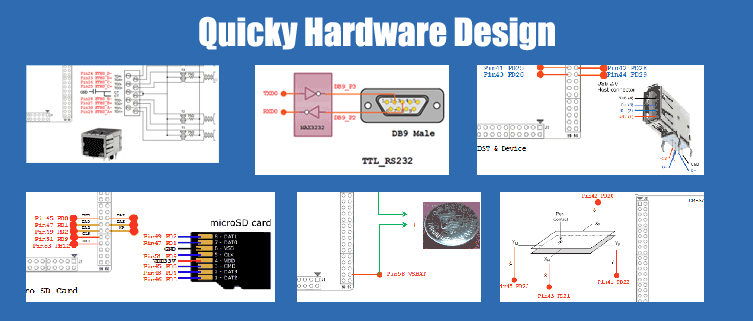

Qucikly Design the base board
