IPC-SAM9G45 | ATmel AT91SAM9G45Industrial CPU board
  • Working Temperature: -40 to +85 Celsius
  • Atmel AT91SAM9G45 processor, up to 400Mhz
  • 128MB DDR2 SDRAM, 256MB NAND Flash, 4MB Data flash
  • 9 Serial ports
  • 2 USB Host, Ethernet, TF card, SPI, IIC, Key.
  • 1 x VGA, 1 x LCD/touchscreen interface
  • Support Linux 2.6.30 system

仅支持批量购买
需求请联系我们



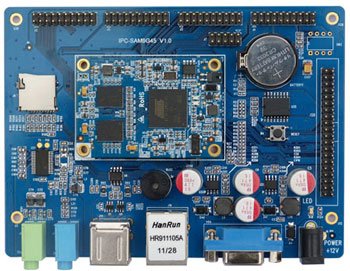

The IPC-SAM9G45 Industrial Computer is a high-performance controller board introduced by CoreWind. It is designed based on the CPU Module CM-SAM9G45 processor card which integrates an AT91SAM9G45 microcontroller, 128MByte DDR2 SDRAM, 256MByte Nand Flash, 4MB Dataflash, 2Kbit EEPROM, UART, Ethernet, USB HOST, LCD, Touch screen, RTC on board. It is connected with IPC-SAM9G45 expansion board through 200pin B-T-B expansion interfaces, The IPC-SAM9G45 expand 5 Serial port from CPU and expand 4 Serial port by System Bus.

CoreWind also offers a complete software development package to customers. The board supports linux 2.6.30 operating system and is provided with complete basic drivers which enable a quick channel to evaluate the Atmel AT91SAM9G45 processor and customize application software. It would be an ideal development platform for multimedia and communication applications.

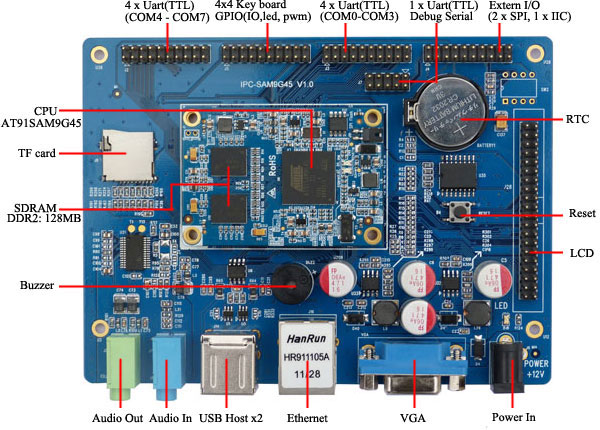

HardWare

Atmel AT91SAM9G45
ARM926EJ-S Core Microprocessor
32kbytes Data Cache, 32kbytes Instruction Cache
One 64kbyte internal SRAM and  ROM
Can work at up to 400MHz
Memory Devices
SDRAM: 128MB DDR2 RAM
NAND Flash: 256MB NAND Flash
Data flash: 4MB Data flash
EEPROM: 4kbit EEPROM
TF Card: Support 32GB TF card
RTC

Integrated RTC chips with battle back up

Mechanical
Dimensions: 135.6 * 100.3mm
Power Input Voltage: 12V
Temperature Range: -40 ℃ ~ 85 ℃
Humidity Range: 20% ~ 90%
Expansion Header
Four 20-pin Connector for extend interface
One 10-Pin Connector for Debug Serial port
One 40-Pin Connector for LCD interface
VGA-out Connector
Integrated VGA chips
VGA DAC (high speed triple DACs), Support 800*600
9 x Serial Port(TTL)
4 x Serial port from CPU function
4 x Expand Serial Port from System Bus
1 x Debug Serial port
Total: 7 x 5-wire, 1 x 9-wire, 1 x 3-wire Serial Port
USB HOST/Device
One High-speed USB 2.0 Host port, 480Mbps
One high-speed USB OTG(Support USB Host/Device)
TF-card

Support 32GB TF card

Display
One 40-pin TFT-LCD interface
4-wire resistive touch screen interface
Support 4.3"LCD - 10.4"LCD, Support 1024*768
Audio In/Out
Integrated Audio chips (SSC)
Support One Audio In and One Audio Out
Support 1 Buzzer
General I/O
1 x System LED and 1 x Power LED
1 x Reset Button
4 x 4 Matrix keyboard interface
2 x SPI, 1 x IIC, 1 x PWM, 10 GPIO

SoftWare

Support Linux 2.6.30 System
CAN Bus 2.0 driver
LED driver
USB Host
NET: Ethernet, TCP/IP, Telnet
Serial port driver, RS485/RS232 Driver
VGA Driver, 800*600
Yaffs filesystem

Applications

Industrial control
Field Communication

Download

Name Format Size Update Date-Version
IPC-SAM9G45 Overview   pdf  1.7MB  2011-11-5
IPC-SAM9G45 Getting Start pdf
IPC-SAM9G45 Reference Manual pdf

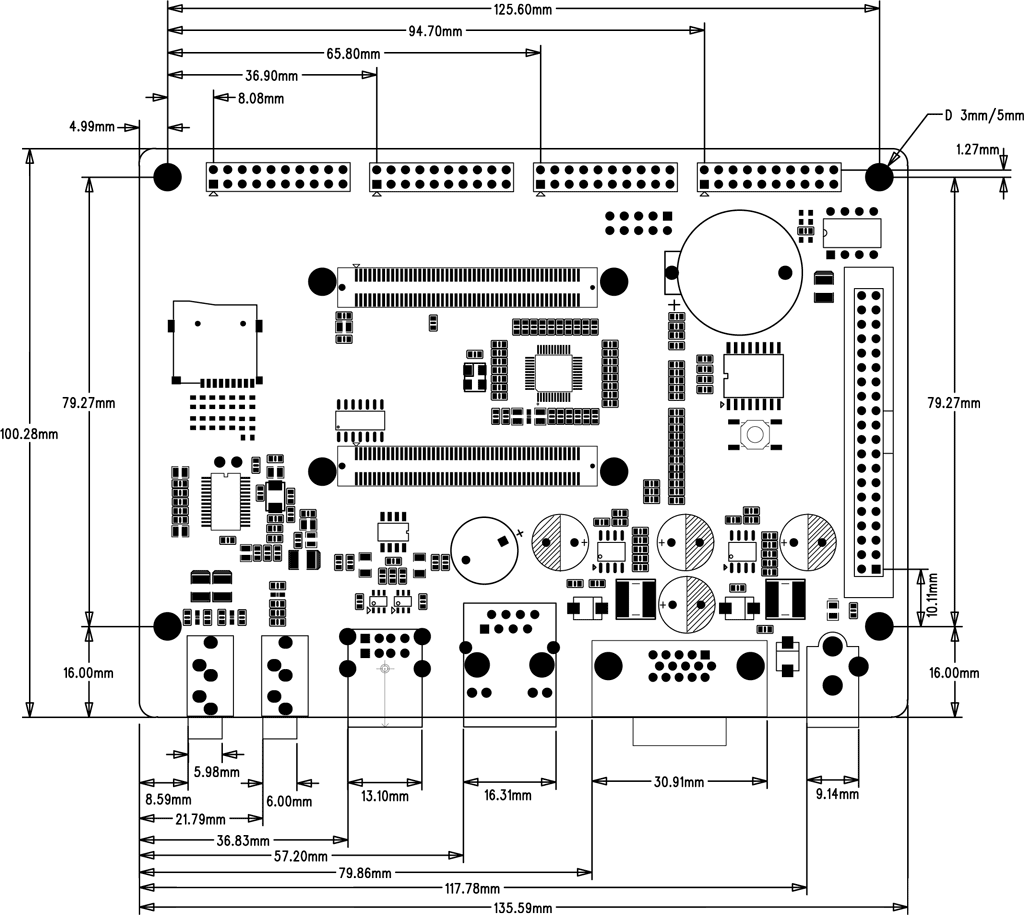

IPC-SAM9G45 Size gif 100KB 2011-11-6

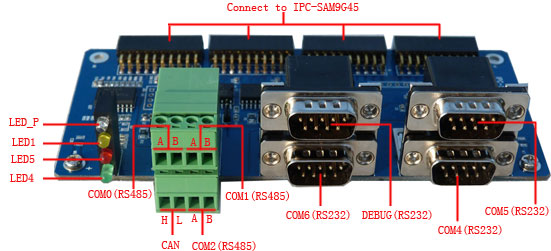

IPC-SAM9G45 Expand Module

Item Details Linux Download

IPC-SAM9G45-CON

expand follow function
4 x RS232 Serial prot
3 x RS485 Serial port
1 x CAN bus
4 x LED
Support pdf Download
